Insert Flow Meter
Insert Flow Meter
|Fixed Depth Insertion Magmeter|
• Low-flow performance and accuracy superior to any mechanical flow sensor
• No moving parts to wear out
• Dedicated fittings for simple installation
• Retainer clip automatically sets correct depth
• Meter extends only ~1/8 of pipe diameter, minimizing potential for clogging with debris
• Simple pulse train output can be used with any SeaMetrics signal processing module, or sent directly to a PLC
• Available for pipe sizes 1" to 10", in Brass, 316 Stainless, PVC, and CPVC
|The complete lack of moving parts of the EX100/200-Series insertion flow sensor is the source of its reliability. Brass and stainless steel models withstand a variety of temperature, pressure, and chemical conditions. The EX-Series has no rotor to stop turning in dirty water and there are no bearings to wear out.|
|The IP80-Series are impeller (or “paddlewheel”) insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2" to 8". Sensors are available in brass, 316 stainless|
steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High-quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life.
|The IP100/200-Series are adjustable depth insertion paddlewheels that come in brass or 316 stainless models|
to fit 3” to 48” pipe. Installation fittings are standard 1-1/2" (101/201) or 2” (115/215) NPT. Fittings such as saddles and weldolets may be purchased either locally or from SeaMetrics.
|The TX80-Series are insertion turbine meters designed for use in 1-1/2" to 8" pipe. High-quality jewel bearings and precision shafts ensure long life and low friction. Available|
in 316 stainless steel, brass, PVC and polyprolylene, sensor bodies are machined from solid rod for maximum low-flow performance. The TX80-Series use special fittings that ensure ease of installation and correct depth setting in the pipe.

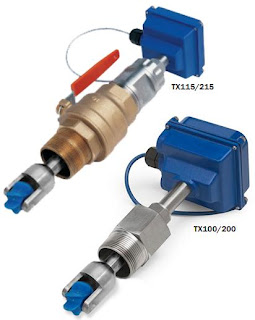

|The TX100/200-Series are adjustable depth insertion turbines|
that come in brass or 316 stainless models to fit 3” to 48” pipe. Installation fittings are standard 1-1/2" (101/201) or 2” (115/215) FNPT. Fittings such as saddles and weldolets
may be purchased either locally or from SeaMetrics.
|Fittings for 80 Series||Downloads|
|SeaMetrics insertion meters must be seated in fittings that match|
the pipe size and material.
